Multi Gauging Computer Aided SPC Gaugings

We offer advanced Multi Gauging Computer Aided Statistical Process Control (SPC) Gaugings designed to automate and streamline dimensional inspections of complex Automotive Components. These systems are capable of measuring multiple Parameters across several Stations, offering real-time Data Acquisition, Traceability, and Integration with Customized Software. Applications include HOUSING Compressors, BRAKE DISCs, Crankshafts, Shafts, Bearings, Bushes, and other Engine and Transmission Components. With capabilities such as FFT (Fast Fourier Transform) for Runout and advanced Sorting Systems, our SPC Gaugings ensure quality control and reduce rejection risks at customer ends.

• Fully Automated Measurement Across Multiple Stations
• Real-Time Data Logging with Traceability and Reporting
• FFT (Fast Fourier Transform) Enabled for Runout Analysis
• Customized Software for Mismatch Detection and Sorting
• Measures Multiple Parameters Simultaneously
• Suitable for All Types of Precision Automotive Components
• Reduces Human Error and Enhances Quality Control
• Designed for High-Speed Production Lines and Inline Inspection
• Compatible with Steel (MS – Mild Steel), Carbide (WC – Tungsten Carbide) Gaugings
• Ensures Process Compliance, Reduces Rejection and Rework

• HOUSING Compressor Multigaugings
• BRAKE DISC Multigaugings
• TURBINE Housing, CENTER Housing, BEARING Housing
• BACK Plate, RING Nozzles, BUSHes
• SHAFT Gaugings – All Diameters with Lengths
• BEARING / BUSH Gaugings – ID (Inner Diameter), OD (Outer Diameter), Height
• Crankshafts, Diff Cases, Engine Valves, Brake Drums
• Component Sorting Based on Quality Norms
• Real-Time Process Validation in Automotive Manufacturing Units
• Ideal for Quality Control Departments, Metrology Labs, and Inline Inspection Stations

• As we are experienced & specialized in Multi gauging we can design & supply a multigauging solution for various automotive components. We have worked on some of the below-mentioned components.

• To check almost 18 parameters in 2-3 station & get recorded all data with traceability.

• Check brake thickness at variant places.
• Autorotation for calculating the Runout, Fourier transmissions, Called as 'FFT'.

• HOUSING COMPRESSOR
• TURBINE HOUSING
• CENTER HOUSING
• BEARING HOUSING
• BACK PLATE
• RING NOZZLE
• BUSH
• Crankshaft
• Shaft
• Diff Case
• Engine Valve
• Brake Disc & drum
• Various other engine & automotive parts

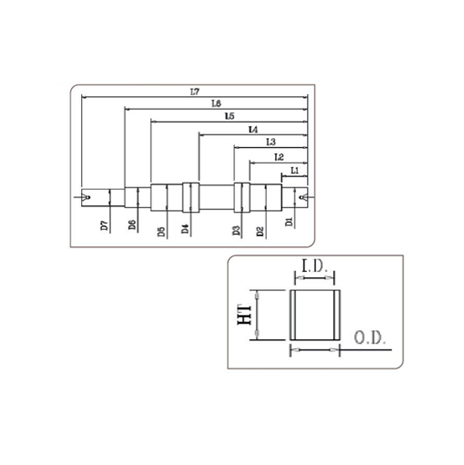

• SHAFT GAUGING: All diameters with lengths can be checked.
• BEARING / BUSH: All parameters like ID, OD & height can be checked.

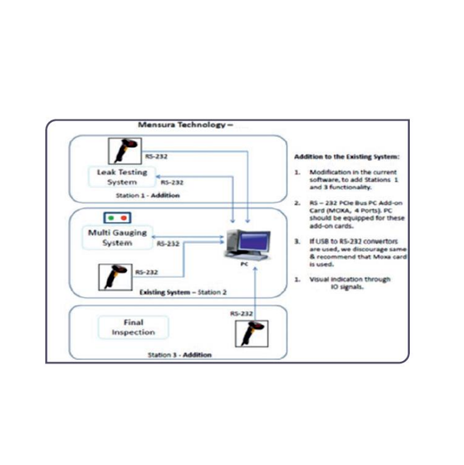

• In today's day to practice it is hectic to identify the jobs produced has passed through all the quality norms & if one of the job is not performed this & gone to customer end may lead to big rejection from customer. We can offer the solutions like sorting & confirmation of about processes as below.
